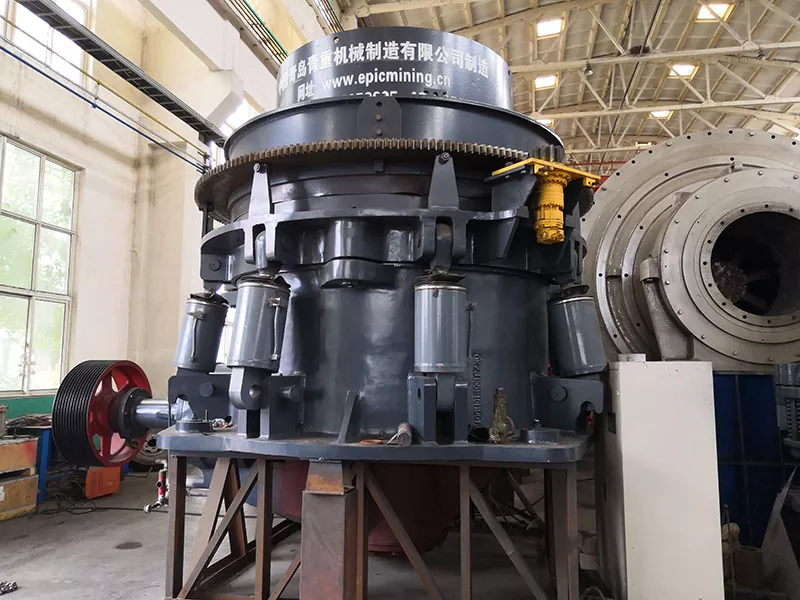

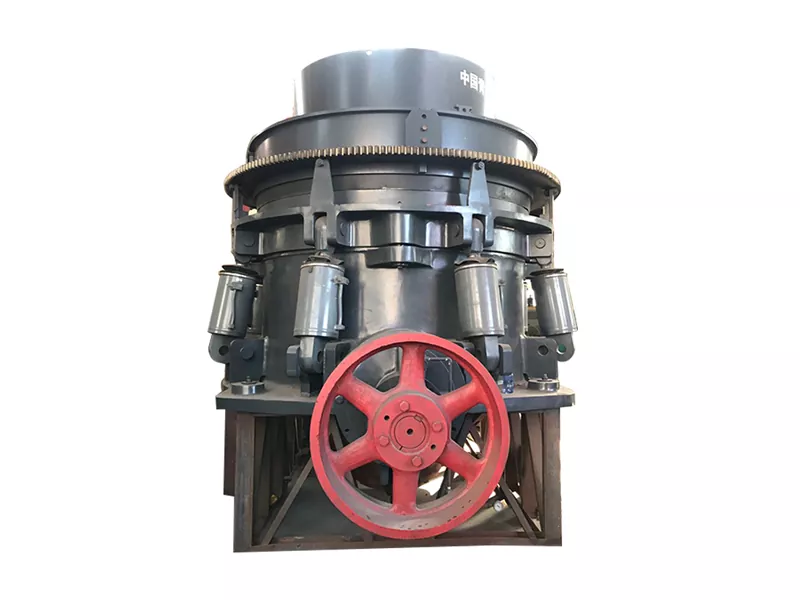

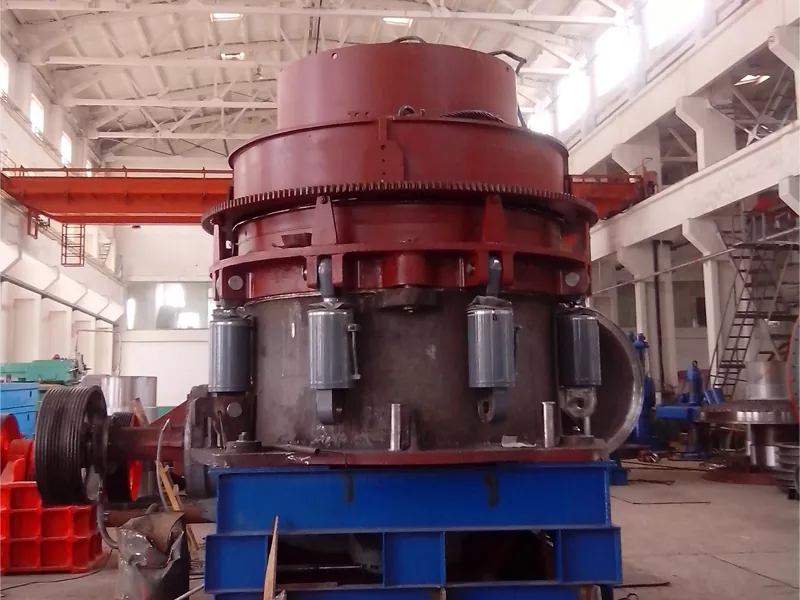

Multi Cylinder Hydraulic Cone Crusher
EPIC is a professional Multi Cylinder Hydraulic Cone Crusher manufacturer and supplier in China. If you interested in products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
EPIC is Multi Cylinder Hydraulic Cone Crusher manufacturer and supplier in China, we can provide professional service and better price for you. Multi-cylinder hydraulic cone crusher is a high-energy cone crusher with high performance.It combines higher speedand stroke to greatly improve the rated power and passing capacity of the crusher,and has higher crushing capacityand crushing efficiency;It has been widely used in medium crushing,fine crushing and ultra-fine crushing of variousmedium-hard rocks such as granite and basalt.It is a new product in the mining construction industry to replace thespring cone crusher and the general hydraulic cone crusher.It is an ideal equipment for large stone plants and miningcrushing.
Equipment features:
Large production capacity,high degree of automation,good grain size of finished products,less wear,long service life,continuous renewal and development of crushing equipment,extended wearing parts,long service life,easymaintenance and repair.
Product Parameter
| Model |
Breaking diameter (ft/mm) |
Cavity type |
(inch/mm) Size of feed port |
The smallest Discharge outlet (inch/mm) |
Electric motor |
Overall weight (excludingmotor) |
Discharge outlet size (mm) |
Capacity (t/h) |
||
| Closing side | Opening side | Model | Power | |||||||
| HPY-B1313 |
41/4 (1295) |
Thin | 43/8(109) | 53/8(137) | 1/2(13) | JS126-6 | 155 | 26.5 | 13-31 | 125-210 |
| HPY-B1321 | Medium | 71/2(188) | 81/4(210) | 5/8(16) | 16-38 | 140-285 | ||||
| HPY-B1324 | Coarse | 85/8(216) | 95/8(241) | 3/4(19) | 19-51 | 180-385 | ||||
| HPY-B1325 | Extra-coarse | 91/2(238) | 103/8(259) | 1 (25) | 25-51 | 250-400 | ||||
| HPY-B1620 |
51/2 (1676) |
Thin | 71/2(188) | 83/8(209) | 5/8(16) | JS136-6 | 240 | 49.6 | 16-38 | 205-365 |
| HPY-B1624 | Medium | 81/2(213) | 95/8(241) | 7/8(22) | 22-51 | 275-465 | ||||
| HPY-B1626 | Coarse | 95/8(241) | 103/4(268) | 1(25) | 25-64 | 320-700 | ||||
| HPY-B1636 | Extra-coarse | 133/8(331) | 141/2(368) | 11/2(38) | 38-64 | 465-755 | ||||
| HPY-BC2117 |
7 HD Extra Heavy (2134) |
Thin | 71/8(253) | 111/8(278) | 3/4(19) | Y450-6 | 400 | 105 | 19-38 | 410-805 |
| HPY-BC2133 | Medium | 121/8(303) | 133/8(334) | 1(25) | 25-51 | 560-1100 | ||||
| HPY-BC2136 | Coarse | 133/8(334) | 143/4(369) | 11/4(31) | 31-64 |
860-1405 960-1500 |
||||
| HPY-BC2146 | Extra-coarse | 163/8(425) | 181/8(460) | 11/2(38) | 38-68 | |||||
| HPY-B2530 |
81/2HD (2590) |
Thin | 107/8(275) | 117/8(300) | 3/4(19) | Y5602-12 | 560 | 135 |
19-38 25-51 |
710-1250 |
| HPY-B2535 | Medium | 125/8(320) | 137/8(350) | 1(25) | 1050-1960 | |||||
| HPY-B2541 | Coarse | 147/8(375) | 161/8(410) | 11/4(31) | 31-64 | 1250-2560 | ||||
| HPY-B2548 | Extra-coarse | 171/2(445) | 187/8(480) | 11/2(38) | 38-64 | 1450-2600 | ||||
| HPY-D0904 | 3(900) | Thin | 1/2(13) | 15/8(41) | 1/8(3) | Y315S-6 | 75 | 15 | 3-13 | 30-105 |
| HPY-D0906 | Coarse | 15/6(33) | 23/8(61) | 1/8(3) | 3-16 | 30-120 | ||||
| HPY-D0907 | Extra-coarse | 2 (51) | 3(76) | 1/4(6) | 6-19 | 60-145 | ||||
| HPY-D1306 |
41/4 (1295) |
Thin | 11/8(29) | 21/2(64) | 1/8(3) | JS126-6 | 155 | 27 | 3-16 | 35-185 |
| HPY-D1308 | Medium | 21/8(54) | 31/2(89) | 1/4(6) | 6-16 | 80-185 | ||||
| HPY-D1310 | Coarse | 23/4(70) | 41/8(105) | 3/8(10) | 10-25 | 115-255 | ||||
| HPY-D1313 | Extra-coarse | 37/8(98) | 51/4(133) | 5/8(16) | 19-25 | 225-265 | ||||
| HPY-D1607 |
51/2 (1676) |
Thin | 13/8 (35) | 23/4(70) | 3/16 (5) | JS136-6 | 240 | 49.7 | 5-13 | 105-240 |
| HPY-D1608 | Medium | 21/8(54) | 31/2(89) | 1/4(6) | 6-19 | 140-315 | ||||
| HPY-D1613 | Coarse | 37/8(98) | 51/4(133) | 3/8(10) | 10-25 | 205-375 | ||||
| HPY-D1614 | Extra-coarse | 45/8(117) | 61/4(158) | 1/2(13) | 13-28 | 285-375 | ||||
| HPY-DC2110 |
7HD Extra Heavy (2134) |
Thin | 2(51) | 41/8(105) | 3/16 (5) | Y450-6 | 400 | 105 | 5-16 | 200-455 |
| HPY-DC2113 | Medium | 33/4(95) | 51/4(132) | 3/8(10) | 10-19 | 460-560 | ||||
| HPY-DC2117 | Coarse | 5(172) | 7(178) | 1/2(13) | 13-22 | 490-660 | ||||
| HPY-DC2120 | Extra-coarse | 6(152) | 81/4(203) | 5/8(16) | 16-25 | 565-730 | ||||
| HPY-D2512 |
81/2HD (2590) |
Thin | 23/8(60) | 43/4(120) | 3/8(10) | Y5602-12 | 560 | 135 | 5-16 | 550-670 |
| HPY-D2515 | Medium | 4(100) | 6(150) | 1/2(13) | 10-19 | 660-820 | ||||
| HPY-D2519 | Coarse | 51/8(130) | 71/2(190) | 5/8(16) | 13-22 | 760-1050 | ||||
| HPY-D2522 | Extra-coarse | 61/4(160) | 85/8(220) | 3/4(19) | 16-25 | 910-1290 | ||||
