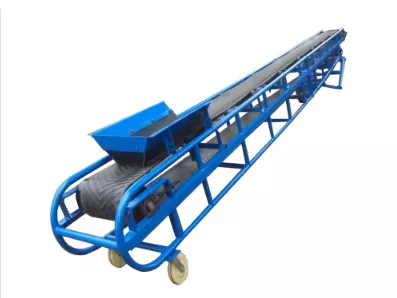

Portable Belt Conveyor

EPIC is one of professional China Portable Belt Conveyor manufacturer and supplier, if you are looking for the Portable Belt Conveyor, consult us now!

Send Inquiry

Product Description

EPIC is one of prominent manufacturer, producer, and exporter of Portable Belt Conveyor in China. A belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly sheathed on them.The drum that drives the conveyor belt to rotate is called the driving drum(driving drum);Another drum that only changes the direction of the conveyor belt is called the reversing drum.The driving drum is driven by a motor through a reducer, and the conveyor belt is driven by the friction between the driving drum and the conveyor belt.The driving drum is generally installed in the discharge end,in order to ncrease traction,conducive to drag.The material is fed by the feeding end,falls on the rotating conveyor belt,and the unloading end of the conveying bag is driven by the friction of the conveyor belt.

Equipment characteristics

Compact structure,reliable performance,durable,easy to transport.

Product Parameter

Model	PY50	PY50	PY50	PY65	PY65	PY65	PY80	PY80
Bandwidth(mm)	500	500	500	650	650	650	800	800
Tape speed(m/s)	1.2	1.2	1.2	1.2	1.2	1.2	1.6	1.6
Maximum dip Angle(°)	19	19	19	19	19	19	16	19
Transport capacity(m³h)	80	80	80	135	135	135	262	296
Conveying length(m)	10	15	20	10	15	20	15	20
Maximum height(m)	3.73	5.44	7.09	3.73	5.44	7.09	5.1	2.4
Minimum height(m)	0.5	1.27	1.27	0.5	1.27	1.27	2.9	3.0
Motor type	Y100L2-4	Y112M-4	Y132S-4	Y112M-4	Y132S-4	Y132M-4	Y132M-4	Y132M-4
Motor power(kW)	3	4	5.5	4	5.5	7.5	7.5	7.5
weight(kg)	847	1123	1540	1189	1950	2300	2700	3100
