Corrugated Sidewall Belt Conveyor

One of the Chinese companies offering Corrugated Sidewall Belt Conveyor for wholesale is EPIC. For you, we can offer better pricing and competent service. Should you be intrigued by Corrugated Sidewall Belt Conveyor, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.

Send Inquiry

Product Description

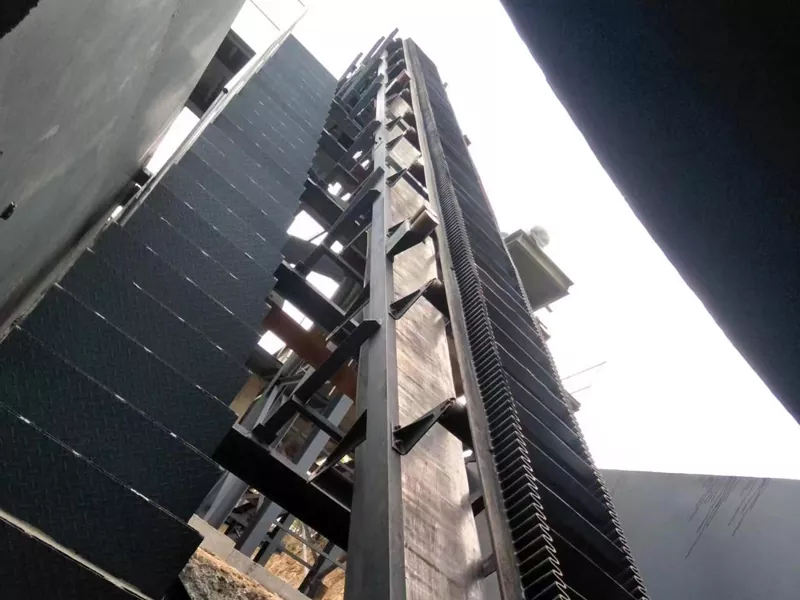

As one of professional manufacturer in China, EPIC would like to provide you Corrugated Sidewall Belt Conveyor. And we will offer you the best after-sale service and timely delivery. Large dip Angle belt machine is used with corrugated fender and diaphragm conveyor belt,the allowable transmission Angle can be up to 90°,so it can save the land area,save equipment investment and civil construction costs,has higher comprehensive economic benefits, is the ideal equipment for large dip Angle transmission and vertical iting.

Advantages of equipment:

1,Simple structure,stable operation,low noise,reliable operation,low energy consumption,convenient connection,large throughput.

Product Parameter

tape widthB(mm)		300		400		500		650		800
Edge height(mm)		40	60	60	80	80	120	120	160	120	160	200	240
Partial conveying angle conveying capacity Q³/h	30°	15	14	20	34	46	71	104	120	128	157	195	235
	45°	11	10	14	26	35	57	83	97	102	127	157	195
	60°	8	7	10	18	25	40	58	69	72	90	112	142
	90°	4	4	5	10	13	21	31	37	38	48	60	76
Overall dimension	H²/h(mm) Head wheel center height	350-100				1100-2000		1300-2000		1300-2000
	H/h(mm) Tail wheel center heigh	t 335		330-490		600		600		600-800
	H/h(mm) Surface height of middle section	450		500-700		760-800		800-850		800-1115
	B²/h(mm) Foundation width of middle section	480		580		870		1020		1220

tape widthB(mm)		1000				1200				1400
Edge height(mm)		120	160	200	240	160	200	240	300	160	2 200	240	300	400
Partial conveying angle conveying capacity Q³/h	30°	172	216	267	327	275	331	419	466	319	395	500	564	794
	45°	137	175	216	271	222	267	347	384	258	318	414	465	680
	60°	96	124	153	197	158	190	253	178	184	226	302	337	524
	90°	51	66	83	106	85	102	136	149	98	121	162	180	281
Overall dimension	H²/h(mm) Head wheel center height	1400-2000 1600-2000
	H/h(mm) Tail wheel center height	600-800				800-1000				800-1200
	H/h(mm) Surface height of middle section	800-1200				1050-1500				1050-1700
	B²/h(mm) Foundation width of middle section	1440				1690				1890
