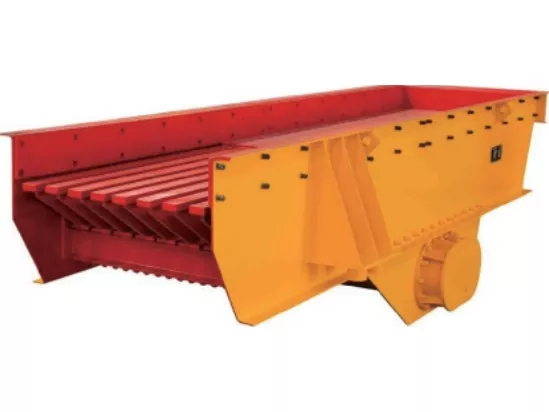

Grizzly Feeder

EPIC is a Chinese Grizzly Feeder manufacturer. We have a complete production line and a precision machining workshop.

Send Inquiry

Product Description

The Grizzly Feeder is a linear vibration feeder,which has the advantages of simple structure,convenient installation,stable vibration,reliable operation,long service life,easy maintenance and repair,and easy to realize automatic control.

It is mainly used for continuous and uniform feeding to conveyors,bucket elevators,crushers,ball mills and other equipment,and for coarse screening of material feeding.It is used in automatic control systems to realize the automation of production processes.It is widely used in crushing and screening combined equipment in mineral processing,building materials,silicate and chemical industries.

Product Parameter

Model	Cell dimensions (mm)	Input size (mm)	Rotating of the eccentric shaft (r/min)	Capacity (t/h)	Power (kw)	Dementions outline (mm)
ZSW380×95	3800×950	500	500-800	96-160	11	3882×2224×2121
ZSW420×110	4200×1100	550	500-800	120-240	15	4957×2277×2150
ZSW490×96	4900×960	580	500-800	120-240	15	4957×2400×2150
ZSW490×110	4900×1100	600	500-800	120-280	22	6000×2500×2150
ZSW590×130	5900×1300	750	500-800	300-500	22	6082×2580×2083
ZSW600×130	6000×1300	1000	500-800	400-560	30	6627×2350×3068
ZSW600×200	6000×2000	1000	500-800	400-600	37	6436×3853×3014
