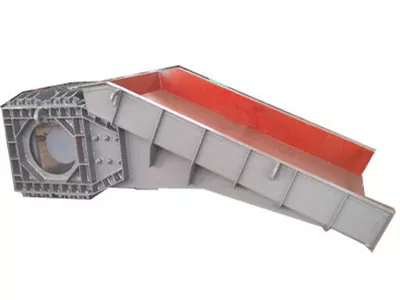

Double Mass Vibrating Feeder

XZG double-mass vibration feeder is composed of material trough,balance frame,shear spring,hanger,spiral compression spring,vibration motor(or motor-driven vibration exciter)and other objects.The vibration motor connects the balance frame with the material trough through shear spring.When the vibration motor (or motor-driven vibration exciter)vibrates,it drives the balance frame to generate vibration,and the balance frame transmits the vibration to the material trough through shear spring.It should be specially pointed out that in the process of vibration for cetransmission,the resonance vibration is generated by the mutual excitation of two masses,rather than the traditional single mass vibration.When the two masses trigger the resonance vibration,the excitation force increases instantaneously.This principle is also an important theoretical source that the power consumption of the XZG double-mass vibration feeder produced by our company is one third less than that of the conventional equipment.

Equipment features:

1.The power of XZG double-mass vibrating feeder is more than one third of that of conventional products of the samespecification;

2.The impact of this type of product on the dynamic load of support suspension is less than half of that of conventional products;

3.The working noise of this type of equipment is lower than that of ordinary vibrating equpment after startup;

4.The service life of the modified equipment is longer and the replacement of spare parts is easy.

Double Mass Vibrating Feeder Parameter
