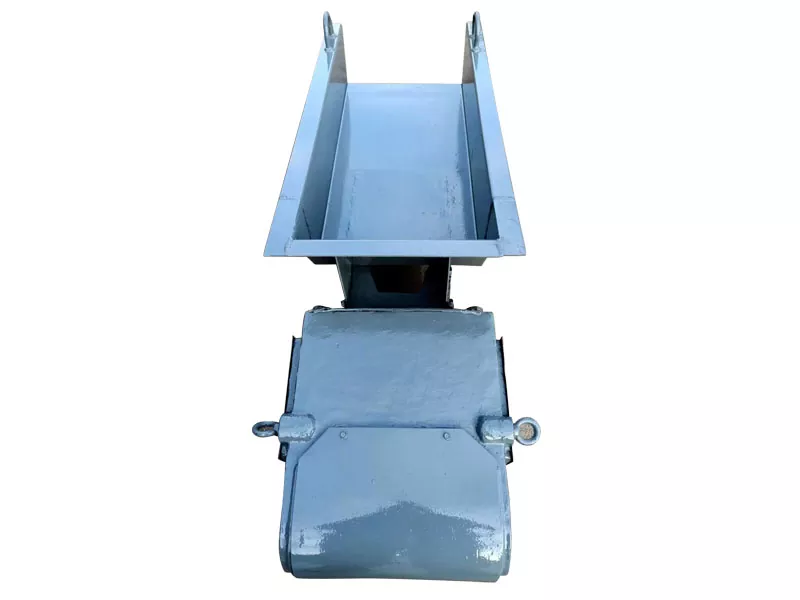

Electromagnetic Vibrating Feeder

Manufacturer from China with many years of experience, EPIC offers high quality Electromagnetic Vibrating Feeder. We have sufficient inventory and guarantee fast delivery.

Send Inquiry

Product Description

Electromagnetic Vibrating Feeder from EPIC Factory has large inventory and good quality. Contact us for the best price. GZ series electromagnetic vibration feeder is widely used invarious industries such as mining,metallurgy,coal,building materials,light industry,chemical industry,electric power,machinery,grain,and so on,to uniformly and continuously or quantitatively feed bulk,granular and powder materials from the storage bin or funnel to the receiving device.

For example,feeding to belt conveyor,bucket elevator,screening equipment,etc.,feeding to crusher,crusher,etc.,as well as automatic batching,quantitative packaging,etc.,and can be used in the process of automatic control to realize the automation of production flow.

Product Parameter

Model	Slot specification			Feed size (mm)	Double amplitude (mm)	Voltage (V)	Power (Kw)	Feed volume(th)		(mm)
Model	W(mm)	D(mm)	H(mm)	Feed size (mm)	Double amplitude (mm)	Voltage (V)	Power (Kw)	horizontal	-10°	(mm)
GZ-01	600	200	100	50	1.75	220	0.06	5	7	910x376x485
GZ-02	800	300	120	50	1.75	220	0.15	10	14	1175x506x600
GZ-03	900	400	150	75	1.75	220	0.2	25	35	1325x574x675
GZ-04	1100	500	200	100	1.75	220	0.45	50	70	1615x762x814
GZ-05	1200	700	250	150	1.75	220	0.65	100	140	1815x840x980
GZ-06	1600	900	250	200	1.5	380	1.5	150	210	2410x1092x1530
GZ-07	1800	1100	250	250	1.5	380	3.0	250	350	2800x1332x1710
GZ-08	2200	1300	300	300	1.5	380	4.0	400	560	3302x1556x1995
GZ-09	2400	1500	300	350	1.5	380	5.5	600	840	3515x1176x2200
GZ-10	2500	1800	375	500	1.5	380	4x2	750	1050	3630x2500x2235
GZ-11	2800	2000	375	500	1.5	380	5.5×2	1000	1400	4060x2640x2310
