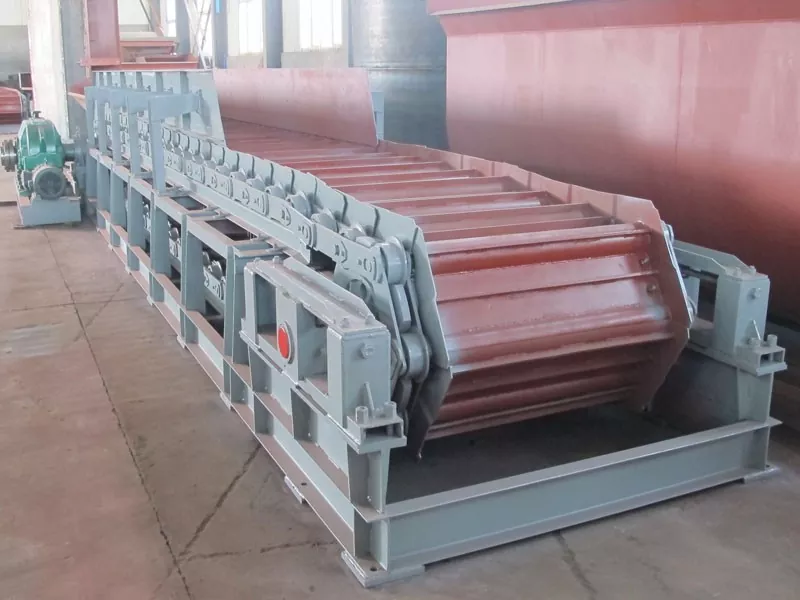

Apron Feeder

EPIC has many years of experience in Apron Feeder production and has mature technology. The plate feeder is suitable for coninuous and uniform distribution and transportation from the storage bin to the crusher,conveyor or other working machinery along the horizontal or inclined section.The plate feeder is widely used inmining,transportation,batching and other technological processes in mining,cement,chemical and metallurgical enterprises.It is applicable to the loose,blocky and massive feeding process in the production line of large andmedium-sized cement plants.It can transport large blocks and work reliably in the harsh environment of high temperature and humidity.

According to the bulk density and block size of the conveyed materials,it is divided into light,medium and heavy plateeeders.The bulk density of GBH medium conveying materials is not more than 2400kg/m³,the block weight is not morethan 300kg,and the temperature is not more than 400℃.The width of the conveying plate is generally 500mm-1250mm.

Product Parameter
