Belt Feeder

EPIC as the professional manufacturer, we would like to provide you high quality Belt Feeder. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Product Profile

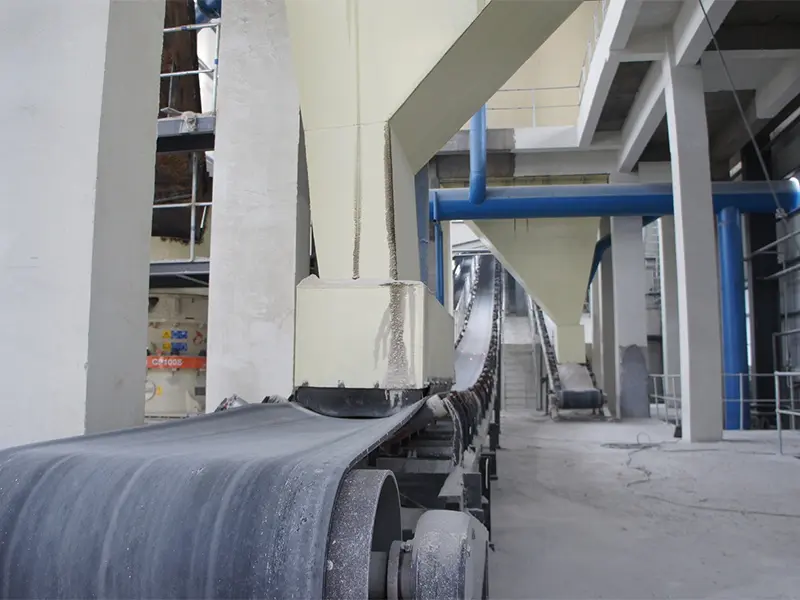

The belt feeder is a mine feeder that can bear greater pressure. According to the requirements of the conveying process, it can be transported by a single set, or by multiple sets, or form a horizontal or inclined conveying system with other conveying equipment to meet the needs of different types of operation lines. The material is fed to the belt surface of the belt feeder through the ore feeding funnel.With the rotation of the AC speed regulating motor, the belt movesorward slowly. The material on the belt surface is fed to the next process through the first round to realize continuous feeding.

Equipment features

1.There are two ways to adjust the production capacity,one is to adjust the speed of the AC speed-regulating motor,and the other is to adjust the insertion depth of the regulating ram installed on the feeding hopper;

2.Low power consumption and convenient operation;Easy installation and large conveying capacity:Low noise.

Product Parameter

Model	Belt width (mm)	Head and tail wheel or drum Wheel center distance (mm)	Diameter (mm)	(t/h)	(mm)	Motor model	Power (kW)	weight (kg)
500×1000	500	1000	219	10~100	0~50	YCT112-4B	0.75	266
500×1300		1300		10~100	0~50	YCT160-4A	2.2	503
500×1500		1500		10~100	0~50	Y2.2-1.0-50-32	2.2	552.7
500×2000		2000		10~100	0~50	Y2.2-1.0-50-32	2.2	609.4
500×2800		2800		10~100	0~50	YCT160-4A	2.2	670
500×3000		3000		10~100	0~50	YCT160-4A	2.2	697
500×4000		4000		10~100	0~50	YCT160-4A	2.2	736
650×1500	650	1500		10~100	0~50	YCT160-4A	2.2	610
650×2600	650	2600		10~100	0~50	YCT160-4A	2.2	636
650×4000	650	4000		10~100	0~50	YCT160-4A	2.2	893
800×2000	800	2000		15~150	0~80	YCT160-4A	2.2	721
800×3000	800	3000		15~150	0~80	YCT200-4B	7.5	857.3
800×4000	800	4000		15~150	0~80	YCT200-4B	7.5	1012
800×4500	800	4500	400	15~150	0~80	YCT160-4A	2.2	1200
000×2000	1000	2000		200~450	0~80	YCT160-4B	3	1549
000×2500		2500		200~450	0~100	YCT160-4B	3	2105
1000×6000		6000		200~450	0~100	YCT225-4A	11	5214
