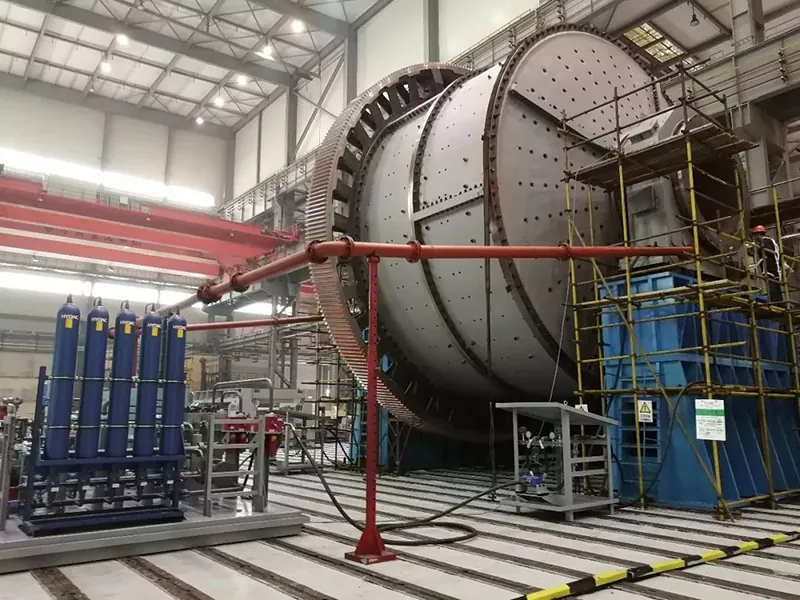

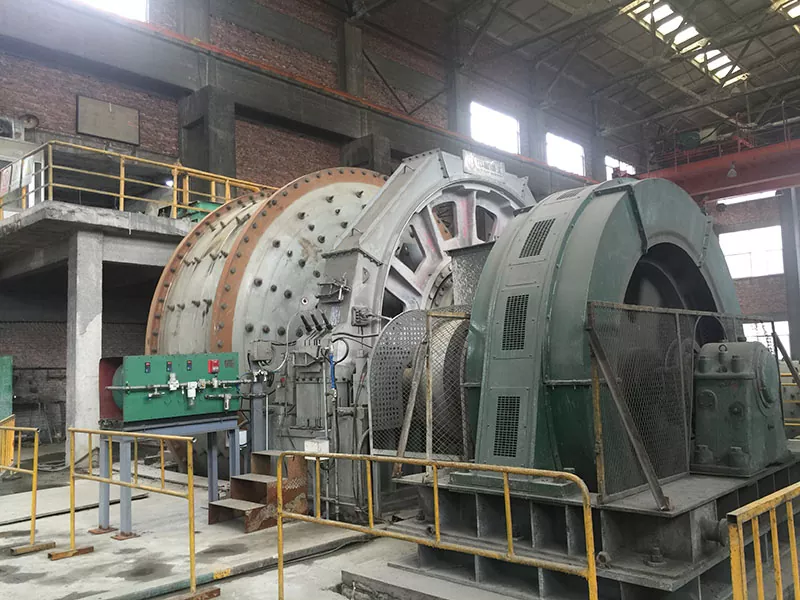

Semi Autogenous Mill

EPIC Semi Autogenous Mill have characteristic design & practical performance & competitive price, for more information on the Semi Autogenous Mill, please feel free to contact us.

Send Inquiry

Product Description

EPIC is a professional leader China Semi Autogenous Mill manufacturer with high quality and reasonable price. Welcome to contact us. It is widely used in the grinding of black and nonferous metal ores and non-metalic ores and rocks,especially suitable for the treatment of useful minerals with hardness below medium and hard,and rocks with uniform distribution of coarse particles.

Product Parameter

Model	Cylinder diameter (mm)	Cylinder length (mm)	Effective area of cylinder (m³)	Maximum bal loading (t)	Operating speed (r/min)	Main motor power (kw)
GZB4016	4000	1600-3600	19-42	13-29	16.2	310-710
GZB4518	4500	1800-4100	27-61	19-43	15.3	470-110
GZB5020	5000	2000-4500	38-83	27-58	14.5	700-1500
GZB5530	5500	2200-5000	51-112	36-78	13.8	960-2200
GZB6124	6100	2400-5500	69-152	48-106	13.1	1400-3100
GZB6727	6700	2700-6000	93-201	65-140	12.5	2000-4300
GZB7329	7300	2900-6600	120-264	84-184	12	2600-5900
GZB8032	8000	3200-7200	160-347	112-242	11.4	3600-8100
