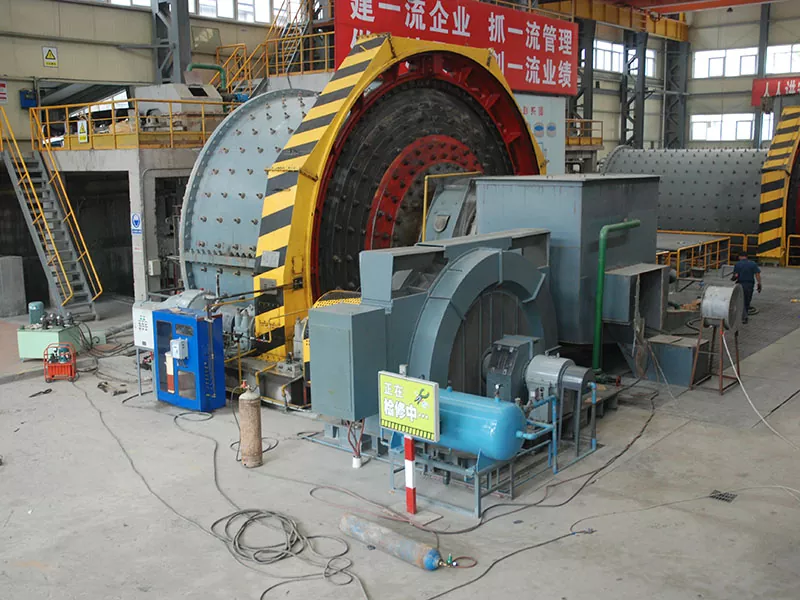

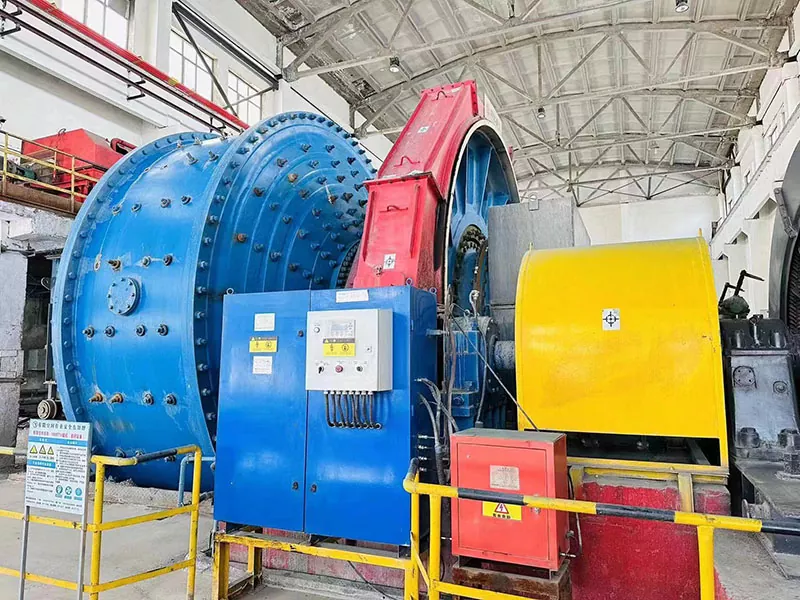

Autogenous Grinding Mill

High quality Autogenous Grinding Mill is offered by China manufacturer EPIC. Buy Autogenous Grinding Mill which is of high quality directly with low price.The main component is a cylinder whose diameter and length are in a reasonable proportion.It is rotated by thetransmission machinery.The material is fed from the central sleeve at one end of the cyinder.The ore is crushed in thecylinder due to the drop impact and self-grinding of the ore itself.The materials that reach the grain size of the finishedproduct flow out from the central sleeve at the other end of the cylinder through the grid plate under the action ofoverflow water.

Equipment features

1.The wet autogenous mill s characterized by low energy consumption,no dust pollution,less auxiliary equipment,easyto realize production automation,and stable product granularity,etc;

2.High-efficiency autogenous mill can realize the functions of two-stage and three-stage crushing and screening,rodmill or ball mill partially or completely crushing,and can process coarse ore without intermediate crushing and finecrushing,with a large crushing ratio of 3000-4000(feeding 300-400 mm,discharging products less than 0.1 mm).

Product Parameter
