Linear Vibrating Screen

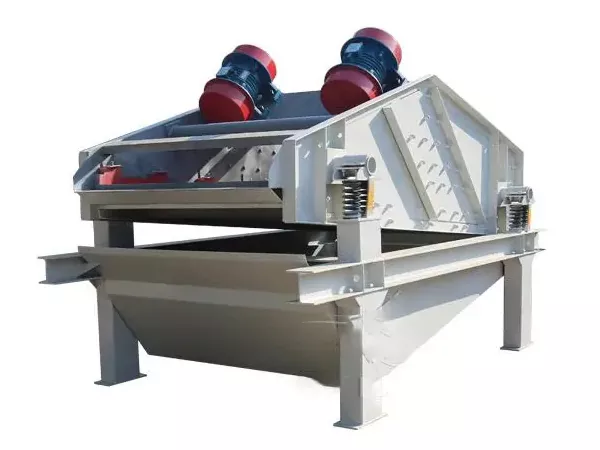

DZS Linear Vibrating Screen

DZS linear vibrating screen is a high-frequency vibrating screen whose screen box reciprocates along the direction alstraight line.It is mainly used for fine particle screening and is suitable for dehydration,desliming,dehydration andheavy medium removal during heavy medium beneficiation.The motor power of the product is small:the screening fficiency is high,the precision is high,and the angle of the screen surface is adjustable.The screen body is welded bybinding steel plate(some components are connected by bolts).The overal rigidity is just,the circumference is reliable,and the service life is long.

Product Parameter

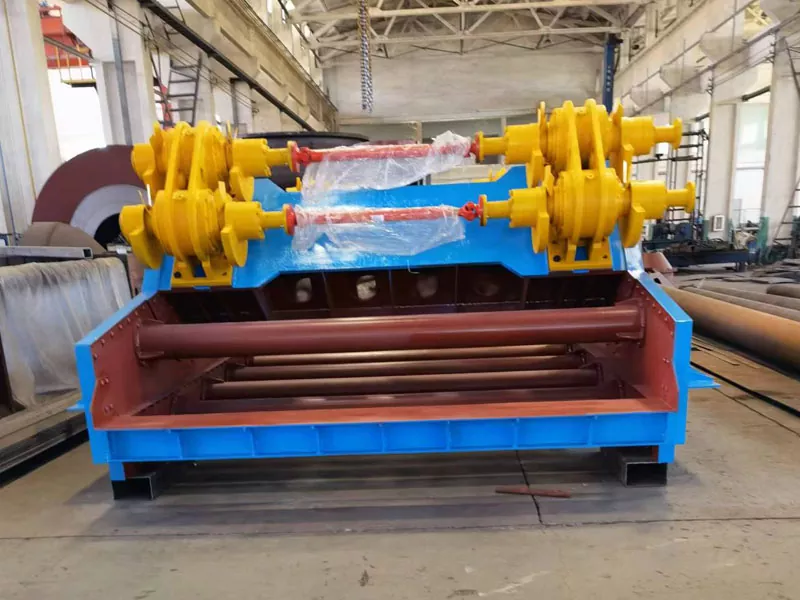

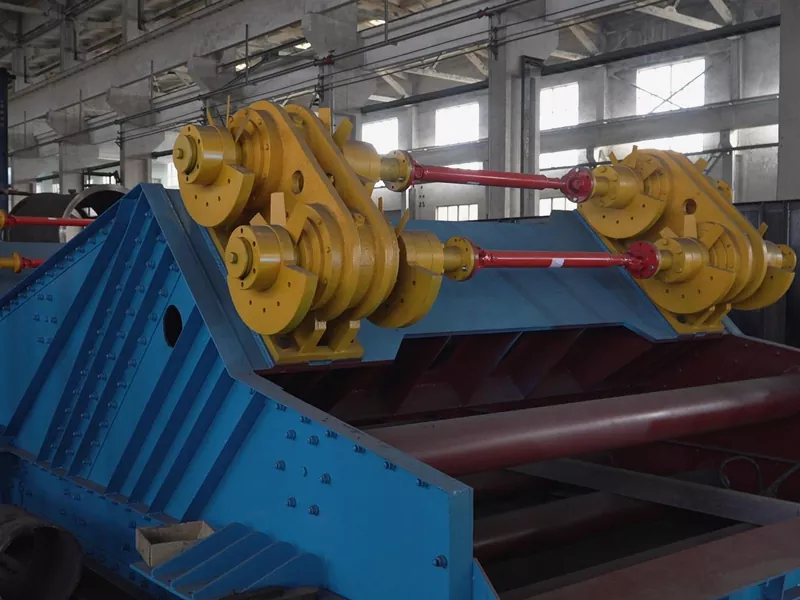

ZKK Linear Vibrating Screen

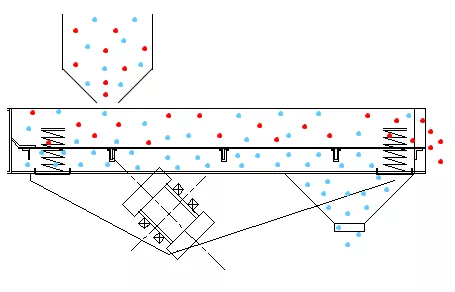

ZKK linear vibrating screen is driven by double vibrators.When the two actuators rotate synchronously and reversely, the excitation force generated by the eccentric block counteracts each other in the direction parallel to the motor shaft and superimposes in the direction perpendicular to the motor shaft,so the motion track of the screen machine is a straight line.The two motor shafts are inclined to the screen surface.Throw the material forward to make it move in a straight line on the screen surface under the action of the excitation force and the self-gravity of the material,so as to achieve the purpose of screening and grading the material.It can be used to realize automatic operation in the pipeline. Equipment  features:

1.Equipped with high exciting force box vibration exciter,high screening efficiency and large processing capacity.

2.It has the characteristics of large rigidity,high strength and balanced stress.

Product Parameter

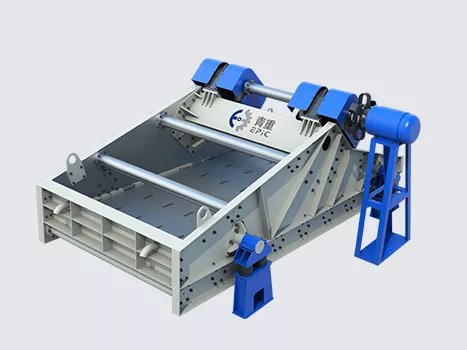

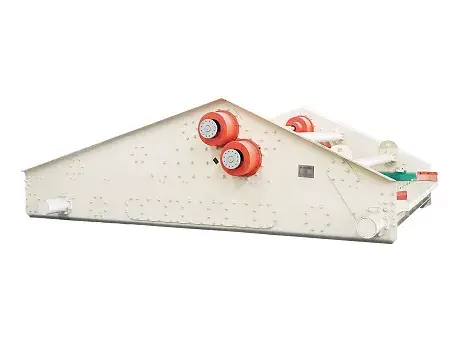

ZKB Linear Vibrating Screen

ZKB vibrating screen is akind of linear vibrating screen with a straight track.It is mainly used to process medium-fine waste materials,such as dry and wet screening or dehydration,media removal,desiting,etc.It has been widely used in  coal preparationindustry,mineral processing industry,building materials industry,power generation industry,chemical ndustry and other sectors.

Equipment  features:

1.Double excitation motor drive

2.The screen plate is made of wear-resistant polyurethane and installed in a modular way 3.The overall profile of the girder is designed and completely stress-relieved

4.The overallprofile design of the bottom crossbeam,and the surface wear-resistant material protection
