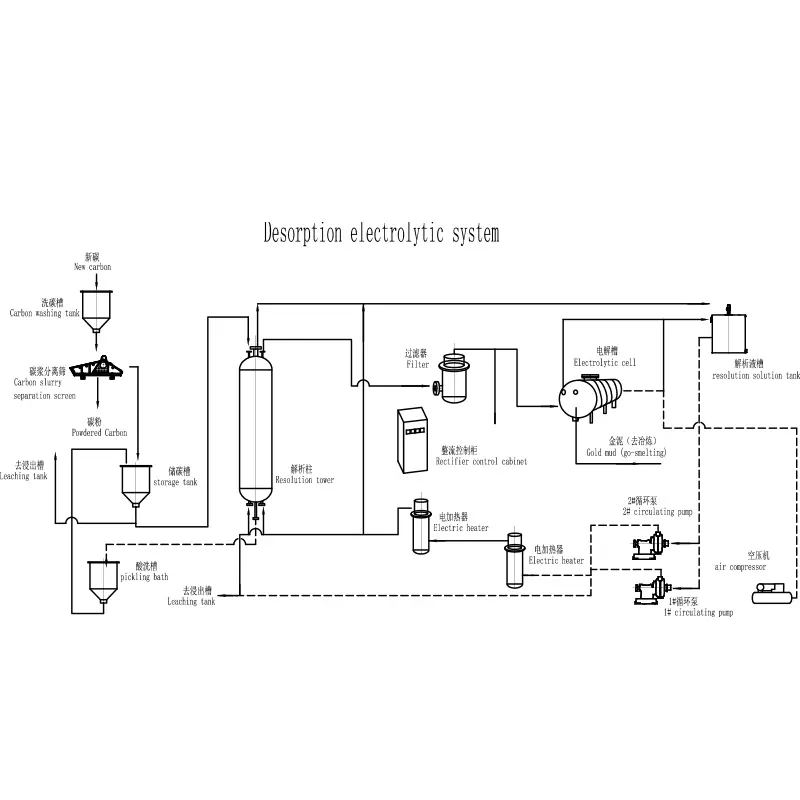

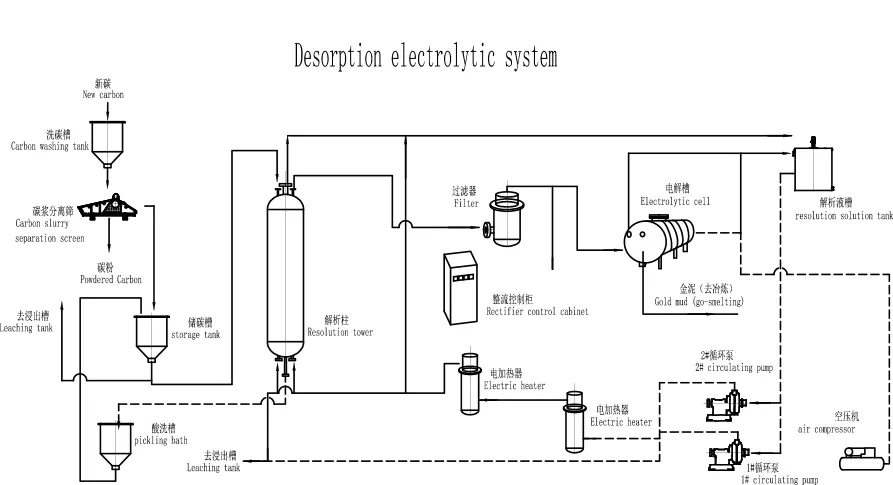

Desorption Electrolytic System

Being a proficient manufacturer, EPIC aims to offer you top-notch Desorption Electrolytic System. We promise to provide you with the best after-sale support and prompt delivery. In adding more easly by activated carbon adsorption desorption system of anion, thus the Au(CN)2"replacement, realize the desorption of gold. The liquid obtained by desorption of gold-loaded carbon is recovered by ionization to obtain solid gold. Equipment characteriatios

1,High temperature, high pressure, no cyanide, desorption automatic control, with high elficiency,bow consumption,fast

characteristics:

a.High efficiency:when the gold-loaded carbon grade reaches 3000 g/t,the desorption rate can reach more than 96%, and the poor carbon grade can be reduoed by 3-4 times compared wth the conventional desorption electrolytic

device:

b.Fast: desorption electrolysis temperature can be as high as 150℃(30-55℃ higher than other models)system working pressure up to 0.5MPa (0.2-0.5MPa higher than other models), so desorption electrolysis time is very fast, generally 12 h, shorten nearly

3 Times: c.Low consumption: the desorption electrolytic temperature is the same,no heat transfer, because of the fast work, so the total power consumption is 1/2-1/4 of the conventional system.

2. No cyanide:desorption solution does not need to add sodium cyanide, low cost, no pollution:

3, High grade gold mud, no need to reverse electrolysis,easy extraction;

4, automatic control: specially set the liquid level control system,temperature control system and automatic control system;

5, Safety:with triple safety protection measures, namely the system itself intelligent, autoratic pressure limiting pressure release mechanism,insurance safety valve.
