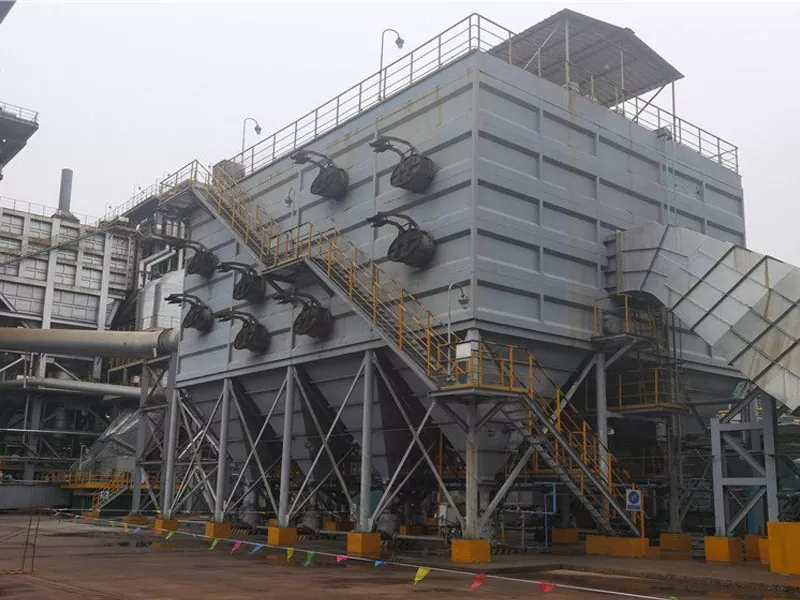

Baghouse

As one of professional manufacturer in China, EPIC would like to provide you Baghouse. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

EPIC, a reputable manufacturer in China, is willing to offer you Baghouse. We promise to provide you with the best after-sale support and prompt delivery. The dusty gas enters the dust collector from the air inlet, and the direction of the air flow changes after the steering device.The large particles of dust fall into the dust hopper due to the action of inertia.The dusty air flow that changes the direction continues to enter the filter chamber,and the dust is blocked and attached to the surface of the filter bag.

Equipment characteristics

RFS series bag dust collector can be used with R type Raymond mill,effectively solve the residual wind dust removal,dust removal efficiency up to 99%.

Product Parameter

ltem Parameter
Grinding model number 3R2714 4R3216 5R4119
Model of dust collector system R3 R4 R5
Treated air volume (m³/h) 1120~5600 1800~9360 4000~20000
Resistance(mmH₂O) 80~300 80~300 80~300
Filter area(m²) 39 66 140
Number of filter bags 24 40 72
Dust removal efficiency(%) >99.5 >99.5 >99.5
Ash bucket volume(m³) 1 1.5 2.6
Dust collector weight(t) 2 2.5 4
Ventilator Model 4-72-11NO.4A 4-72-11NO.4A 4-72-11NO.5A
Power(kW) 5.5 7.5 15
Rotational speed(r/min) 2900 2900 2900
