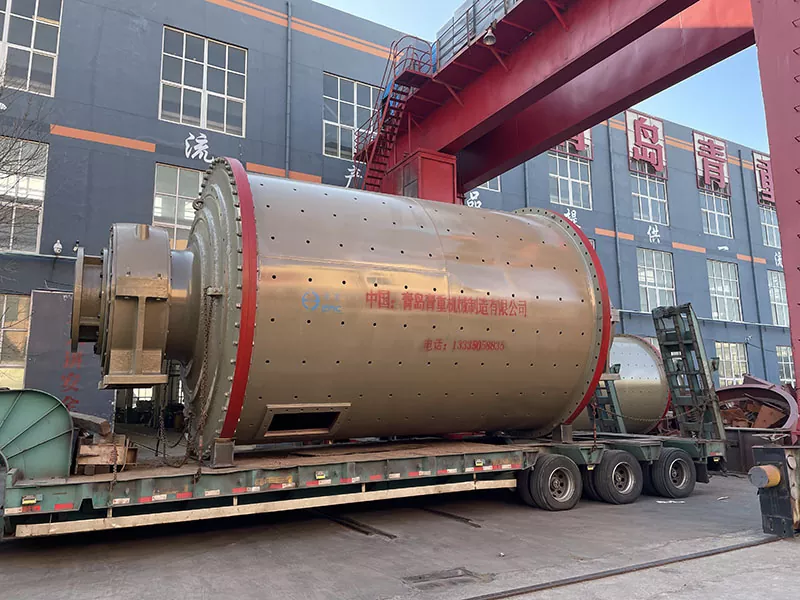

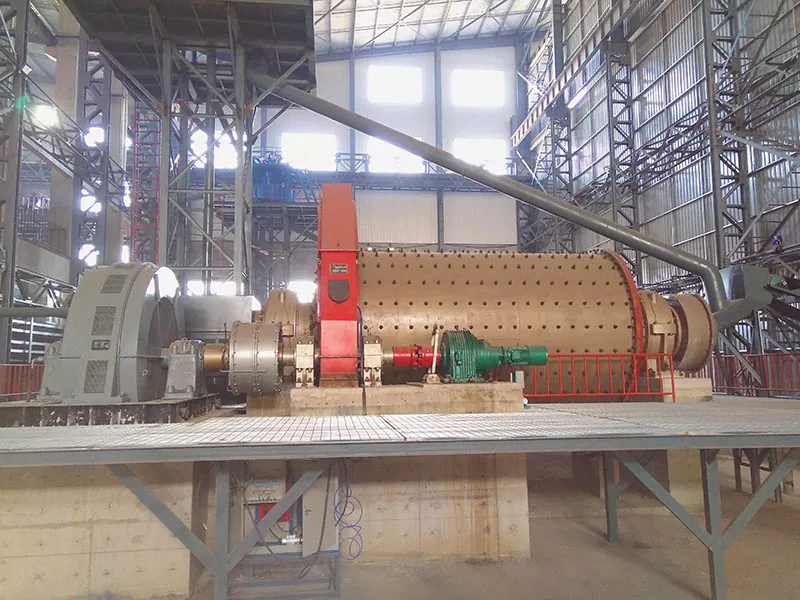

Wet Grinding Overflow Ball Mill

[Product Introduction]: An overflow ball mill with rolling bearings and high efficiency and energy saving.

[Processing capacity]: Up to 160t/h

[Application range]: Commonly used for grinding finer ores.

[Product improvement]: The transmission of this straight overflow ball mill uses rolling bearings instead of sliding bearings, which greatly reduces friction, is easy to start, and saves 20-30% energy.

EPIC's wet grinding overflow ball mill, made in China, is a high-efficiency, energy-saving solution designed for fine ore grinding. With a processing capacity of up to 160t/h, this horizontal ball mill features rolling bearings instead of sliding bearings, reducing friction, enabling easy startup, and saving 20-30% energy. As one of the leading suppliers and manufacturers, EPIC offers customized, durable, and easy-maintainable equipment, available in stock for bulk orders. Enjoy low price, discount, and quality assurance with our latest selling product.

Advantages and features

1.Wet grinding overflow ball mill adopts large double-row spherical roller bearings, which greatly reduces the friction, easy to start, and can save energy by 20-30%;

2.Wet grinding overflow ball mill adopts wave liner, which increases the contact surface of balls and minerals, strengthens the grinding effect, and has lifting ability to the ore, and reduces the energy consumption;

3.Wet grinding overflow ball mill uses large discharge port, large production capacity;

4.The diameter of 2.1 meters or less (excluding 2.1 meters) small ball mill, the use of integral frame, easy civil construction and equipment installation;

5.Wet grinding overflow ball mill adopts oil mist lubrication device to ensure reliable lubrication of large and small gears.

How it works

Wet grinding overflow ball mill is supported by rolling bearings, through the transmission machinery to make it rotate slowly, the material from the cylinder feeding end to feed, in the cylinder due to the steel ball and the ore itself, the impact of the fall and self-grinding, the material can be crushed. Due to the continuous feeding of materials, the pressure prompts the materials in the cylinder to move from the feeding end to the discharging end, and the slurry is higher than the lower edge of the hollow shaft at the discharging end and overflows spontaneously. The hollow shaft has anti-spiral blades, which can return the overflowed steel balls and coarse ore pieces back to the mill. The structure of this new ball mill equipment consists of feeding part, main bearing, rotary part, transmission part (large and small gear device), air clutch, main motor, slow transmission device, jacking device, and lubrication system, electric control system and so on.

Product Parameter
