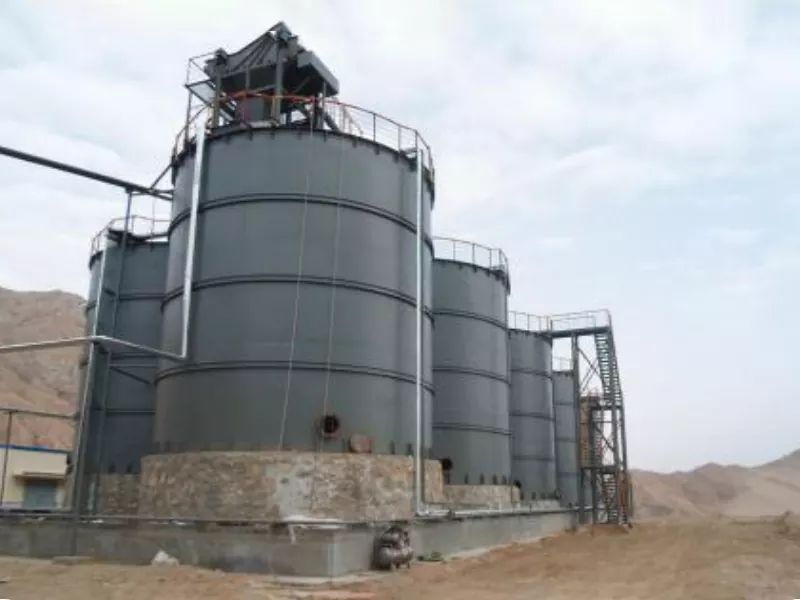

Srpski језик You can rest assured to buy Lifting Agitation Tank from our factory and we will offer you the best after-sale service and timely delivery. TBJ iting mix tank through the centrifugal impeller's high-speed rotation willgenerate negative pressure in the center of the impeller,through the bottom of the impeller cylinder will be external pulp into the tank,and the liquid level in the tank continues to rise,to a certain height along the overflow pipe outflow,so as to achieve the lifting ability.
This equipment can be used when the pulp height difference is insuficient or the difference is small and should not be pumped.
| Model |
Tank volume (m³) |
Impeller diameter (mm) |
Impeller speed (r/min) |
power (kw) |
| TBJ-10 | 0.9 | 350 | 500 | 3 |
| TBJ-15 | 2.8 | 450 | 443 | 11 |
| TBJ-20 | 6 | 550 | 362 | 15 |
| TBJ-25 | 12 | 650 | 305 | 22 |
| TBJ-30 | 21 | 750 | 305 | 30 |
