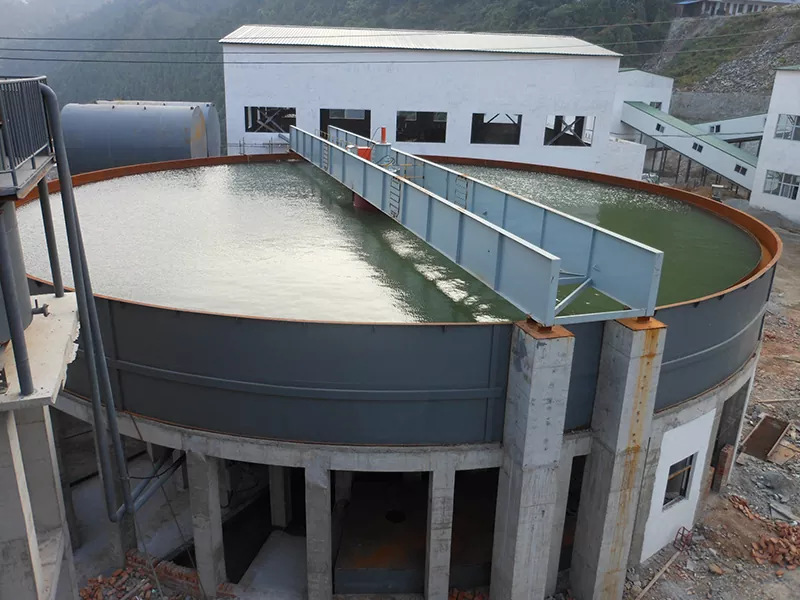

Hydraulic Pressure Center Transmission Thickener

【Product Introduction】: A thickener with central hydraulic motor drive and hydraulic automatic rake lifting.

【Processing capacity】: 28~1590㎡

【Application range】: Mainly used for clarification and concentration of mine slurry to achieve the purpose of dehydration. It can also be used for dehydration operations for solid-liquid separation in chemical, metallurgical and other industries.

【Product Improvement】: Inner diameter can reach 100M

Advantages and characteristics

1. The transmission thickener has a large processing capacity and high concentration efficiency;

2. Hydraulic drive with overload protection function;

3. The core PLC automatically senses the pressure sensor signal to realize hydraulic automatic rake lifting;

4. The transmission device has a simple structure and is easy to maintain;

5. It can be equipped with an automatic dosing system.

Working principle

The hydraulic central transmission high-efficiency thickener is mainly composed of a transmission device, a bridge, a dosing device, a feed pipe, a fixed barrel, a distribution barrel, a scraper, a shaft, a long rake, a short rake, a boom, an electric control device, a hydraulic station, and a maintenance hanger. The central transmission concentrator adopts flocculation technology. The slurry is directly input into the compression area of the concentrator to form a filter bed layer in the pool. The non flocculated fine particles in the slurry input from the bottom are washed up by the water flow and collide with the particles in the filter bed layer. Due to the effect of flocculants, they are combined with other particles and sink, thereby increasing the concentration of the bottom slurry and reducing the concentration of the upper overflow water. Due to the use of flocculants, the particles are easy to form agglomerates, the sedimentation rate is greatly accelerated, and the processing capacity per unit area is significantly improved, which is 4 to 8 times that of traditional concentrators.

Product Parameter
