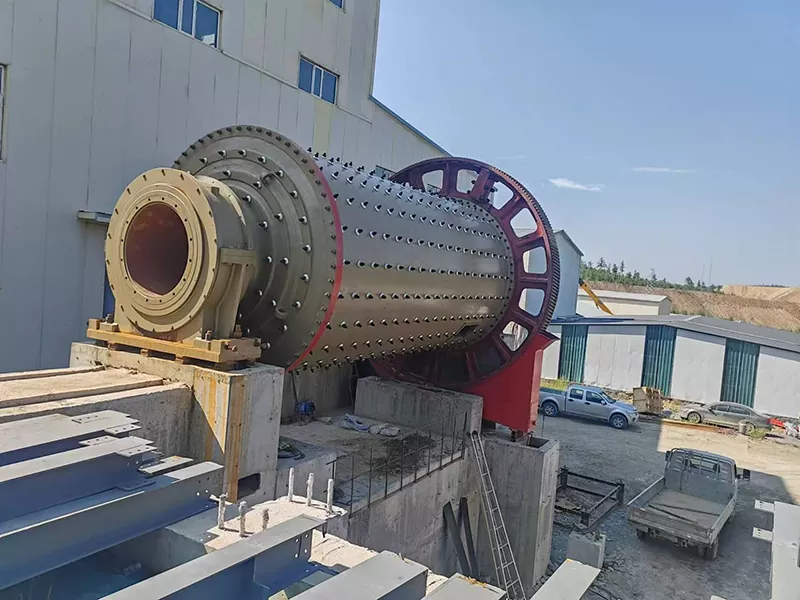

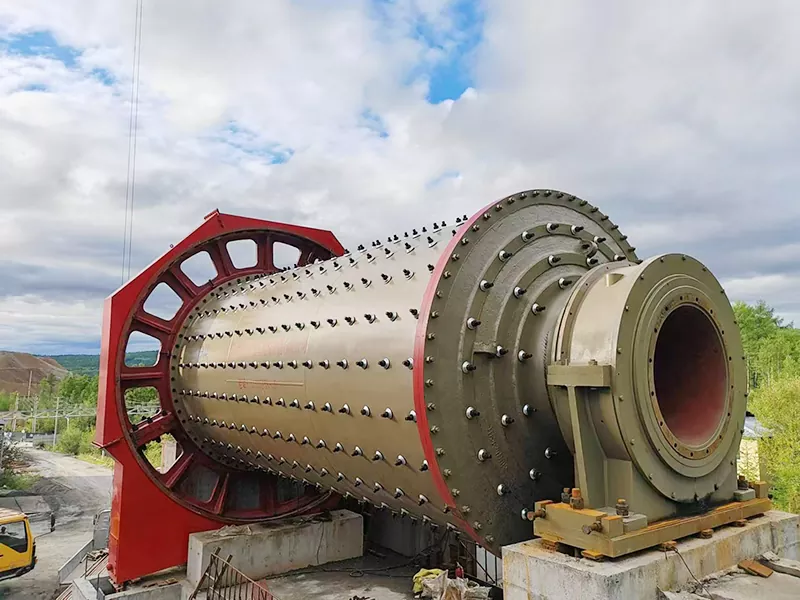

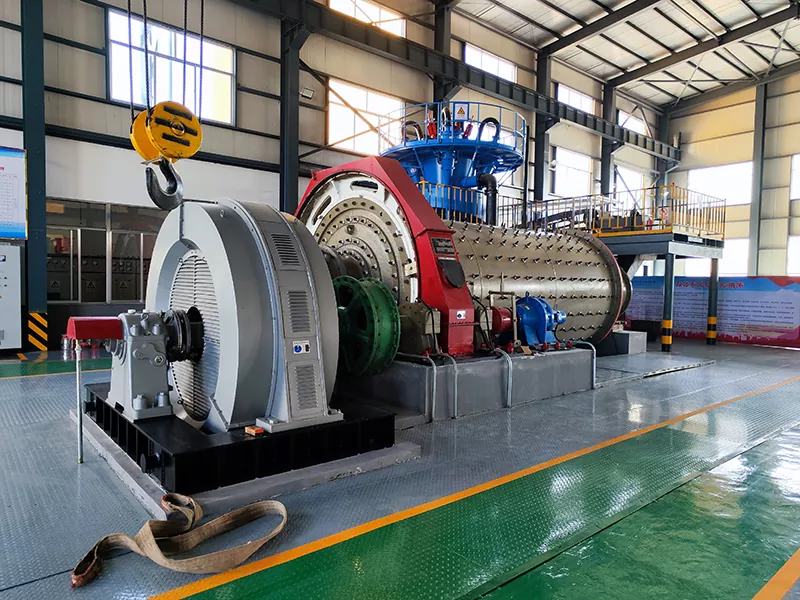

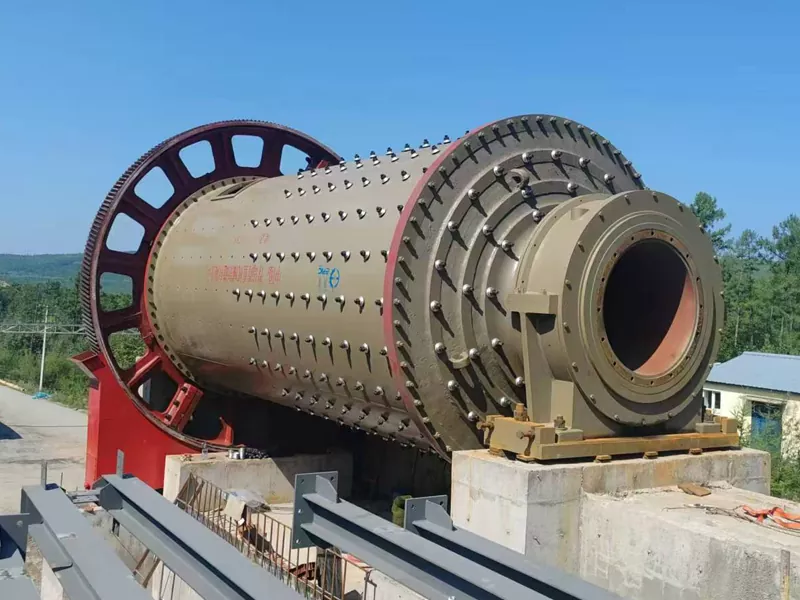

Energy Saving Grate Ball Mill

[Product Introduction]: A high-efficiency and energy-saving ball mill equipment using rolling bearings.

[Processing capacity]: Up to 160t/h

[Application range]: Commonly used for grinding ores with coarse particle size.

[Product improvement]: The EPIC energy-saving grid ball mill uses a grooved annular liner, which increases the contact surface between the ball and the ore, strengthens the grinding effect, and has the ability to lift the ore, reducing energy consumption.

The EPIC energy saving grate ball mill is an advanced, durable, and easy-maintainable grinding solution. Buy discount from China factory suppliers with bulk wholesale options. Made in China, this latest selling product offers a high-quality performance with low price guarantees.

This energy saving grate ball mill features grooved ring lining plate, enhancing the ball ore contact surface for stronger grinding action while reducing energy consumption. Ideal for coarse grain ore processing, it boasts an impressive capacity of up to 160t/h. Customized options are available, ensuring the equipment meets specific requirements. For those seeking reliable manufacturers or suppliers, we provide detailed price lists and quotations upon request. Whether you're looking for in-stock items or cost-effective solutions, this ball mill ensures advanced technology and superior quality, making it a popular choice among buyers globally.

Advantages and features

1. The energy-saving grate ball mill adopts large double-row spherical roller bearings, which greatly reduces friction, is easy to start, and can save energy by 20-30%;

2. The energy-saving grate ball mill adopts corrugated liner, which increases the contact surface of ball and ore, strengthens the grinding effect, and has the ability to lift the ore, reducing energy consumption;

3. The energy-saving grate ball mill uses a large discharge port and has a large production capacity;

4. Small grate ball mills with a diameter of less than 2.1 meters (excluding 2.1 meters) use an integral frame, which is convenient for civil construction and equipment installation;

5. The ball mill adopts an oil mist lubrication device to ensure reliable lubrication of large and small gears.

How it works

The energy-saving grate ball mill rotates slowly through the transmission device. The material is fed from the feeding end of the cylinder. In the cylinder, the material is crushed due to the impact of the steel balls and the ore itself and the self-grinding. As the material is continuously fed, its pressure causes the material in the cylinder to move from the feeding end to the discharging end. The material that reaches the finished particle size is discharged from the discharging end of the cylinder. During wet grinding, the material is carried out by the water flow; during dry grinding, the material is carried out by the air flow. The energy-saving grate ball mill has a discharging grid at the discharging end. The ball mill relies on the grid plate to force the ore to be discharged. The ore pulp surface in the cylinder is low, which reduces the over-grinding of the ore and prevents the discharge of the steel balls. Under the same production conditions, the production capacity is higher than that of the overflow ball mill. Rolling bearings are used at both ends of the cylinder to replace sliding bearings, which saves energy significantly.

Product Parameter
