Why Is the Circular High Rate Inclined Plate Thickener Becoming Essential for Modern Mineral Processing

Article Summary: The Circular High Rate Inclined Plate Thickener has revolutionized mineral processing with its high efficiency, compact design, and cost-effective operation. This article explores its working principle, design features, advantages, operational considerations, and practical applications. By understanding the benefits and implementation strategies of this advanced thickening technology, operators can enhance productivity, reduce operational costs, and achieve superior solid-liquid separation.

Table of Contents

• Introduction to Circular High Rate Inclined Plate Thickener
• Working Principle
• Key Design Features
• Advantages of Using EPIC Circular High Rate Inclined Plate Thickener
• Applications in Mineral Processing
• Operational Considerations and Maintenance
• Technical Specifications
• Frequently Asked Questions
• Conclusion

Introduction to Circular High Rate Inclined Plate Thickener

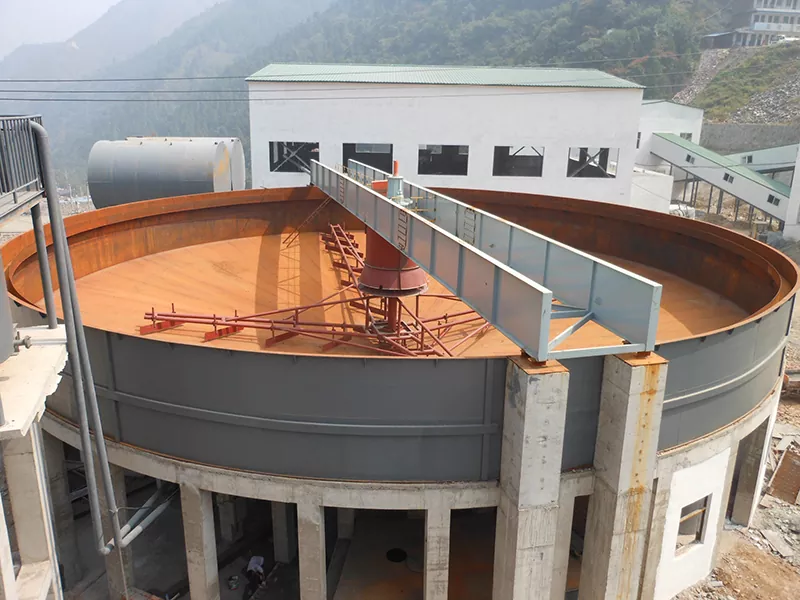

The Circular High Rate Inclined Plate Thickener from EPIC is a cutting-edge solution in the field of solid-liquid separation. It is designed to enhance settling rates and improve thickening efficiency for mining, mineral processing, and wastewater treatment applications.

Traditional thickeners often face limitations such as long settling times and large footprint requirements. The inclined plate design in EPIC’s technology provides a high surface area within a compact unit, allowing rapid sedimentation of fine particles while reducing the need for large tanks.

Working Principle

The circular high rate inclined plate thickener operates on the principle of sedimentation. The slurry is fed into the thickener, where gravity causes the solid particles to settle downward while the clarified liquid rises. Inclined plates, also called lamella, significantly increase the settling area, accelerating the thickening process.

• Slurry enters the feedwell for uniform distribution.
• Particles settle on the inclined plates and slide down to the conical bottom.
• The clarified overflow is collected at the top for further processing or reuse.
• Thickened underflow is discharged continuously or intermittently, depending on the application.

This method enables rapid separation of fine particles with minimal footprint, making it ideal for modern industrial requirements.

Key Design Features

EPIC’s Circular High Rate Inclined Plate Thickener incorporates several advanced design elements:

Advantages of Using EPIC Circular High Rate Inclined Plate Thickener

Using EPIC’s technology offers numerous benefits:

1. High Throughput: The inclined plate design accelerates sedimentation, allowing processing of large volumes.
2. Energy Efficiency: Reduced pumping and recirculation needs lower energy consumption.
3. Space Saving: Compact circular design fits within limited plant areas.
4. Improved Clarity: Produces highly clarified overflow suitable for recycling or discharge.
5. Low Maintenance: Simple design reduces wear and minimizes downtime.
6. Scalable Solutions: Suitable for small-scale operations to large industrial applications.

Applications in Mineral Processing

The circular high rate inclined plate thickener is widely used in various industries:

• Mining: Concentrates recovery from tailings and slurry thickening.
• Mineral Processing: Enhances the efficiency of flotation, gravity separation, and leaching operations.
• Wastewater Treatment: Reduces turbidity and recovers solids for disposal or reuse.
• Chemical Processing: Clarifies process liquids and recycles valuable chemicals.

Operational Considerations and Maintenance

To achieve optimal performance, operators should follow these guidelines:

• Maintain uniform slurry feed to prevent short-circuiting.
• Regularly inspect inclined plates for scaling, corrosion, or clogging.
• Ensure the conical bottom and discharge mechanisms are functioning correctly.
• Monitor overflow clarity and adjust feed rates accordingly.
• Schedule periodic maintenance for drive motors, sensors, and mechanical parts.

Proper operational management enhances thickener efficiency, reduces downtime, and extends equipment life.

Technical Specifications

EPIC offers a range of circular high rate inclined plate thickeners tailored to various industrial requirements. Below is a typical specification table:

Frequently Asked Questions

Q1: What types of materials can be processed in a circular high rate inclined plate thickener?
A1: This thickener is suitable for slurries containing fine minerals, tailings, wastewater solids, and chemical suspensions.

Q2: How does the inclined plate system improve efficiency?
A2: The inclined plates increase the settling area, reducing settling time and allowing higher throughput in a compact footprint.

Q3: Can EPIC thickeners be customized?
A3: Yes, EPIC provides tailored designs based on flow rate, solids concentration, and plant layout requirements.

Q4: What maintenance is required?
A4: Routine inspection of plates, overflow clarity monitoring, discharge mechanism checks, and occasional cleaning or replacement of parts.

Q5: Are EPIC Circular High Rate Inclined Plate Thickeners energy-efficient?
A5: Yes, their design reduces pumping and recirculation needs, lowering energy consumption compared to traditional thickeners.

Conclusion

The Circular High Rate Inclined Plate Thickener from EPIC represents a significant advancement in solid-liquid separation technology. Its high efficiency, compact design, and operational flexibility make it an essential component in modern mineral processing and wastewater treatment facilities. By adopting this technology, companies can achieve higher throughput, improved clarity, and lower operational costs. To learn more about how the EPIC circular high rate inclined plate thickener can transform your operations, contact us today and explore tailored solutions for your facility.
