What Makes a Spiral Classifier Essential in Mineral Processing?

When it comes to modern mineral processing, efficiency, precision, and durability are the core requirements. Among the many machines designed for ore beneficiation, the Spiral Classifier has become one of the most indispensable. This equipment is widely applied in mining plants, sand washing, and separation systems, where it plays a critical role in grading, separating, and cleaning mineral particles. Choosing the right Spiral Classifier is not only about better performance but also about ensuring long-term reliability in demanding working environments.

Qingdao EPIC Mining Machinery Co.,Ltd., with decades of experience in mineral processing solutions, specializes in manufacturing high-quality Spiral Classifiers that are tailored to customer needs. Below, we will provide a detailed breakdown of how Spiral Classifiers work, their specifications, practical applications, and frequently asked questions to help you better understand this essential piece of equipment.

Functions of a Spiral Classifier

The Spiral Classifier is mainly designed for three functions:

• Separation: Dividing fine particles from coarse materials.

• Grading: Sorting mineral particles based on size and density.

• Washing: Removing impurities, such as clay and unwanted fines, to improve ore quality.

The process relies on the principle that solid particles of different sizes and weights settle at different speeds in liquid. The classifier channels heavier and coarser materials back for regrinding, while finer particles are carried forward for further processing.

Key Applications

• Mining Industry: Used after grinding mills to classify ores.

• Sand and Gravel Plants: For sand washing and removal of impurities.

• Chemical Industry: In separating and classifying powder materials.

• Construction Sector: To clean and grade construction sand.

These broad applications demonstrate why the Spiral Classifier is often described as a versatile and irreplaceable machine in ore beneficiation plants.

Product Parameters of Spiral Classifier

To help customers select the right model, here are the main specifications offered by Qingdao EPIC Mining Machinery Co.,Ltd.:

General Technical Features:

• Spiral Diameter: 300mm – 3000mm

• Processing Capacity: 10 – 500 t/h

• Rotation Speed of Spiral: 3.5 – 30 r/min

• Overflow Size: 0.074 – 1.0 mm

• Motor Power: 1.5 – 30 kW

• Tank Length: 3000 – 14500 mm

• Installation Angle: 12° – 18°

Sample Specification Table:

This simplified chart highlights the scalable nature of the Spiral Classifier product range, making it suitable for both small-scale sand washing plants and large-scale mining operations.

Advantages of Qingdao EPIC Spiral Classifier

1. Robust Construction: High-quality steel and wear-resistant materials ensure long service life.

2. Energy Efficiency: Optimized spiral design reduces energy consumption during operation.

3. Reliable Performance: Consistent particle classification improves overall plant productivity.

4. Low Maintenance: Simple design and durable bearings minimize downtime.

5. Customization Options: Models can be adjusted according to different mining conditions and capacity requirements.

Spiral Classifier Working Effect

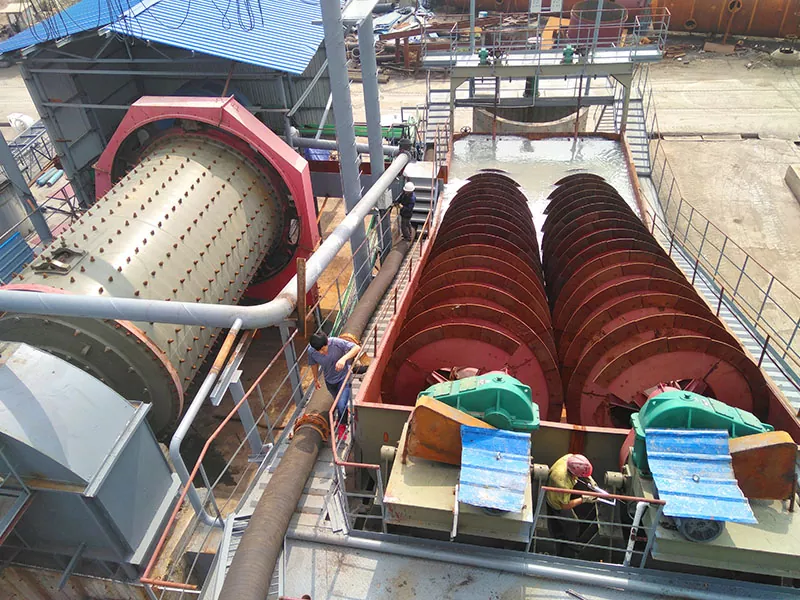

When in operation, the Spiral Classifier creates a controlled settling process. As slurry enters the tank, fine particles remain suspended and are discharged through the overflow, while heavier particles sink and are pushed upward by the rotating spiral to be discharged at the other end. This mechanism ensures continuous operation and stable performance, allowing beneficiation plants to achieve higher recovery rates.

Why Is the Spiral Classifier Important?

• Improves Efficiency of Grinding Mills: Prevents over-grinding by sending oversized particles back to the mill.

• Reduces Operational Costs: By improving classification accuracy, energy usage and resource waste are minimized.

• Enhances Product Quality: Removes impurities effectively, resulting in higher-grade concentrates.

• Supports Sustainable Mining: Efficient water circulation systems reduce environmental impact.

FAQ about Spiral Classifier

Q1: What is the main difference between high-weir and submerged Spiral Classifiers?
A1: A high-weir Spiral Classifier has the spiral blades positioned above the overflow weir, making it suitable for coarse particle classification and dewatering. A submerged Spiral Classifier has 4/5 of the spiral submerged in water, which provides better fine particle classification efficiency. The choice depends on the material size and processing goals.

Q2: How to select the right size of Spiral Classifier for my plant?
A2: Selection is based on several factors such as processing capacity, ore characteristics, grinding mill output, and desired classification accuracy. Smaller diameters suit lower capacities and finer materials, while larger models handle high throughput and coarser classification needs. Consulting with Qingdao EPIC Mining Machinery Co.,Ltd. ensures proper model matching.

Q3: What kind of maintenance is required for a Spiral Classifier?
A3: Regular maintenance includes checking spiral blades for wear, lubricating bearings, inspecting tank linings, and ensuring motor power is stable. With proper care, the Spiral Classifier delivers long-term performance with minimal interruptions.

Q4: Can the Spiral Classifier be customized for specific working conditions?
A4: Yes. Qingdao EPIC Mining Machinery Co.,Ltd. provides custom design services. Spiral pitch, tank dimensions, and overflow settings can be tailored according to ore characteristics, plant layout, and operational goals.

Conclusion

The Spiral Classifier remains an indispensable tool for efficient ore beneficiation and sand washing applications. Its ability to separate, grade, and clean materials with high precision ensures it continues to be the backbone of mineral processing plants worldwide. From small sand production facilities to large-scale mining enterprises, the Spiral Classifier from Qingdao EPIC Mining Machinery Co.,Ltd. delivers efficiency, reliability, and long-term value.

For more details, technical consultation, or customized solutions, please contact Qingdao EPIC Mining Machinery Co.,Ltd. — your trusted partner in mineral processing equipment.
